Multi-Purpose Structural Epoxy Adhesive

Name: Multi-Purpose Structural Epoxy Adhesive
Availability: InStock

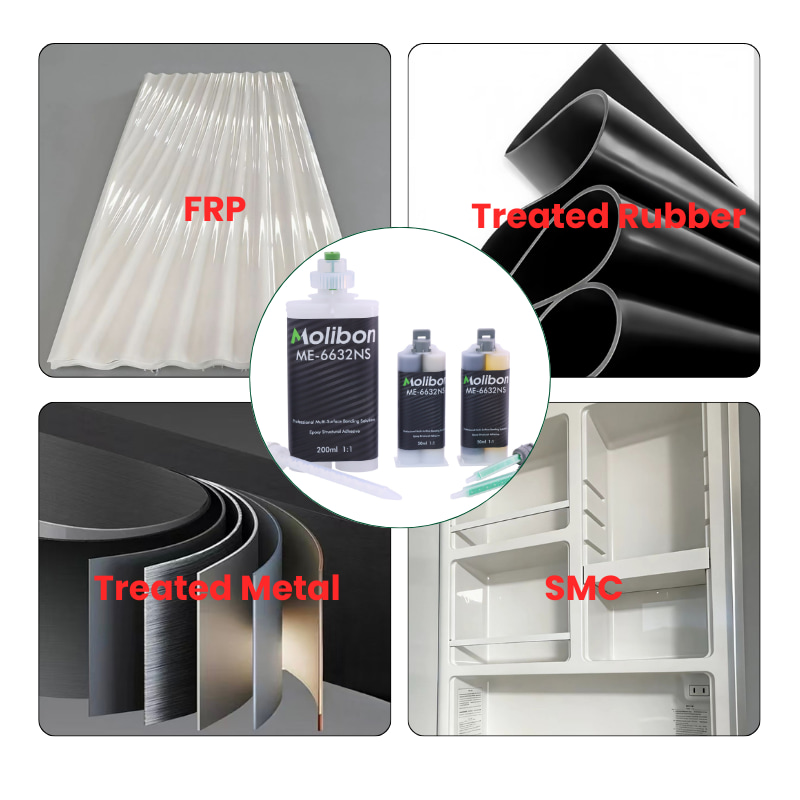

The medium-viscosity epoxy adhesive offers excellent bonding strength, chemical resistance and environmental resistance, making it suitable for bonding treated metals, FRP, SMC components, treated rubber products, and other substrates.

Molibon offers epoxy bonding adhesive in standard 50ml and 400ml snap-lock pail or 5-gallon pails. Both the color (standard black/white) and packaging can be customized.

Product Parameters

Item No :
ME-6632NS-50ML
Order(MOQ) :
>5 Pcs
Payment :
T/T
Product Origin :
Fujian, China
Color :
Black, White (color can be customized)
Shipping Port :
Xiamen
Lead Time :
7 Working Days
Weight :
90 g

Inquiry now

product introduction

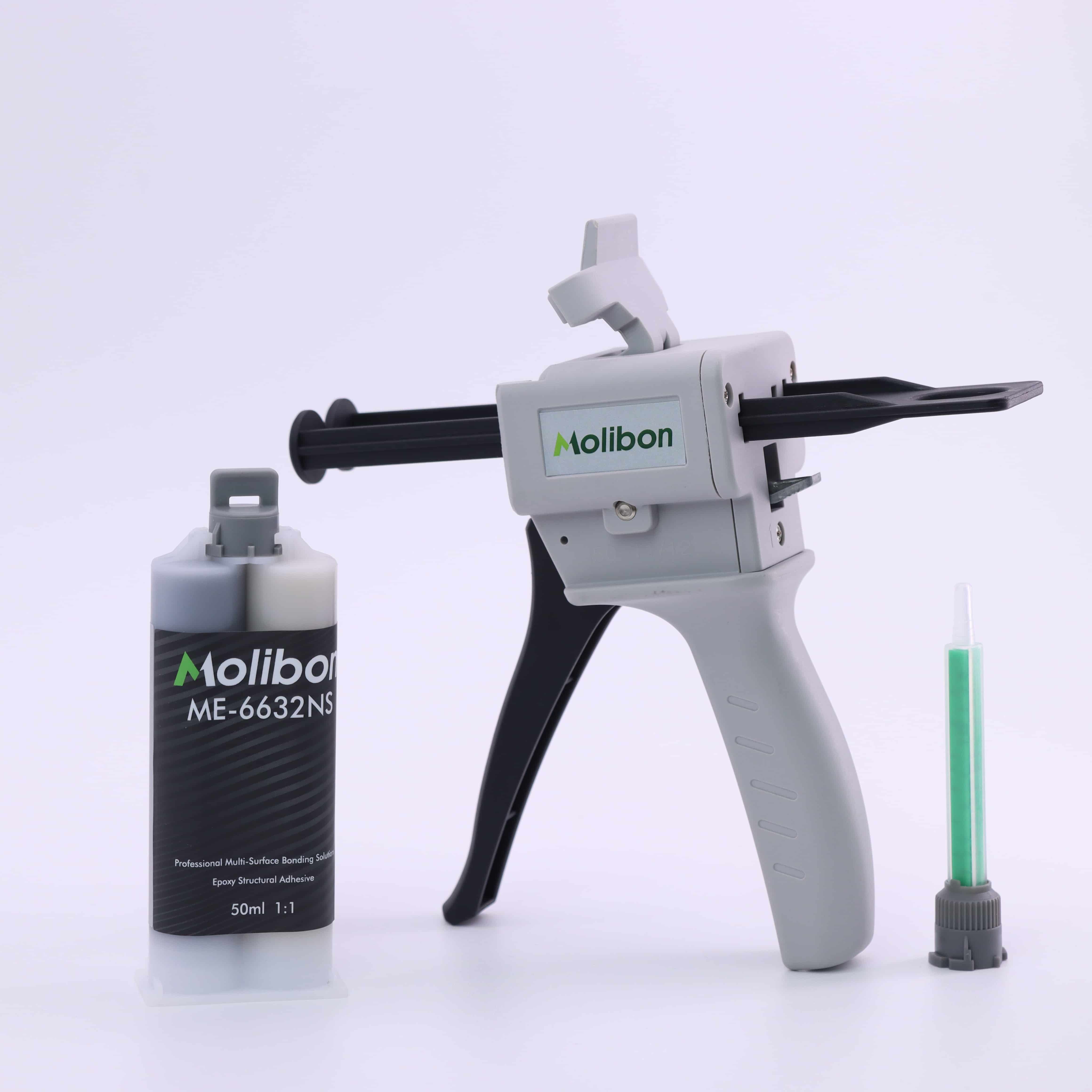

50ML Multi-Purpose Structural Epoxy Adhesive

With a simple 1:1 mix ratio, the metal epoxy adhesive cures with low shrinkage, low water absorption and excellent creep resistance. The high temperature epoxy glue can be cured at room temperature or heated for accelerated curing. It provides load-bearing performance that meets or exceeds the strength of the substrates themselves, delivering excellent bonding strength in transportation applications.

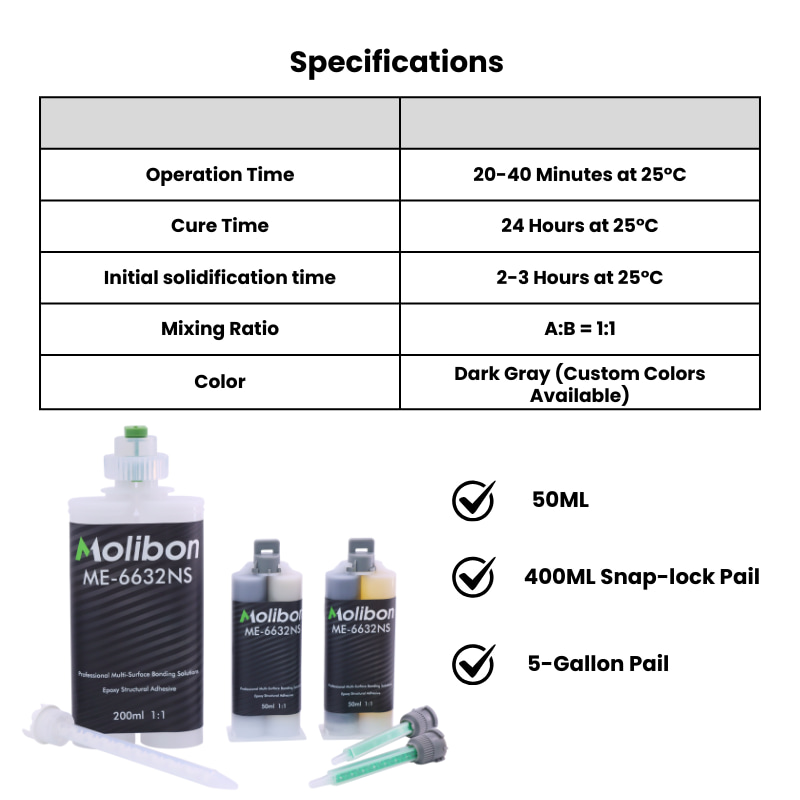

Specification

Appearance	A (Black/White Viscous Liquid), B (Pale Yellow Viscous Liquid)
Operation Time (min)	20-40 Minutes at 25°C
Initial Solidification Time (h)	2-3 Hours at 25°C
Cure Time (h)	24 Hours at 25°C
Density	A:1.02,B:1.02 (Tested According to ASTM D792)
Shelf Life (15/59℉-25℃/77℉)	12 Months
Viscosity CPS	A (200,000-220,000), B (180,000-200,000)
Mixing Ratio	A:B=1:1
Packing Specification	50ML, 400ML or 5-Gallon Pail Packaging

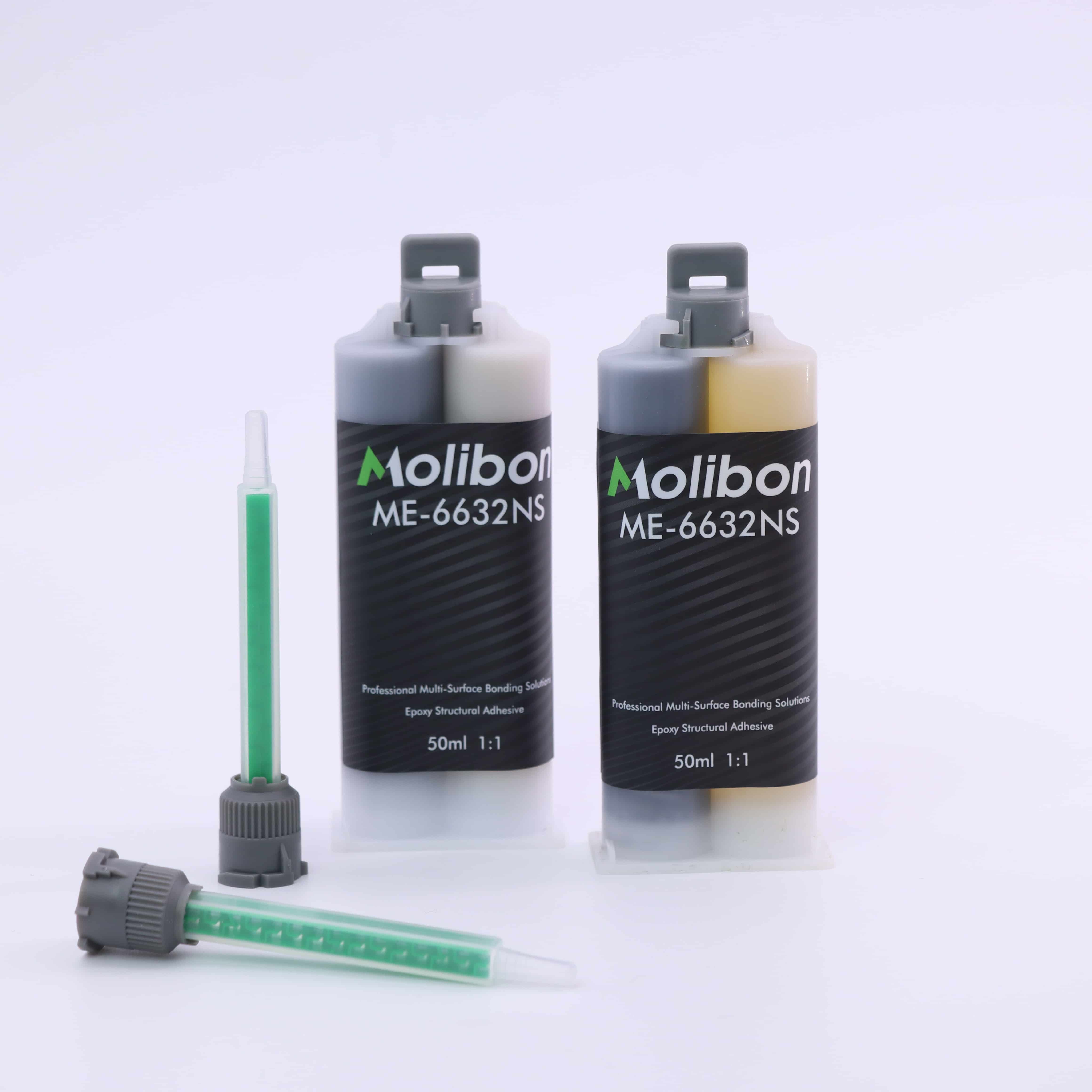

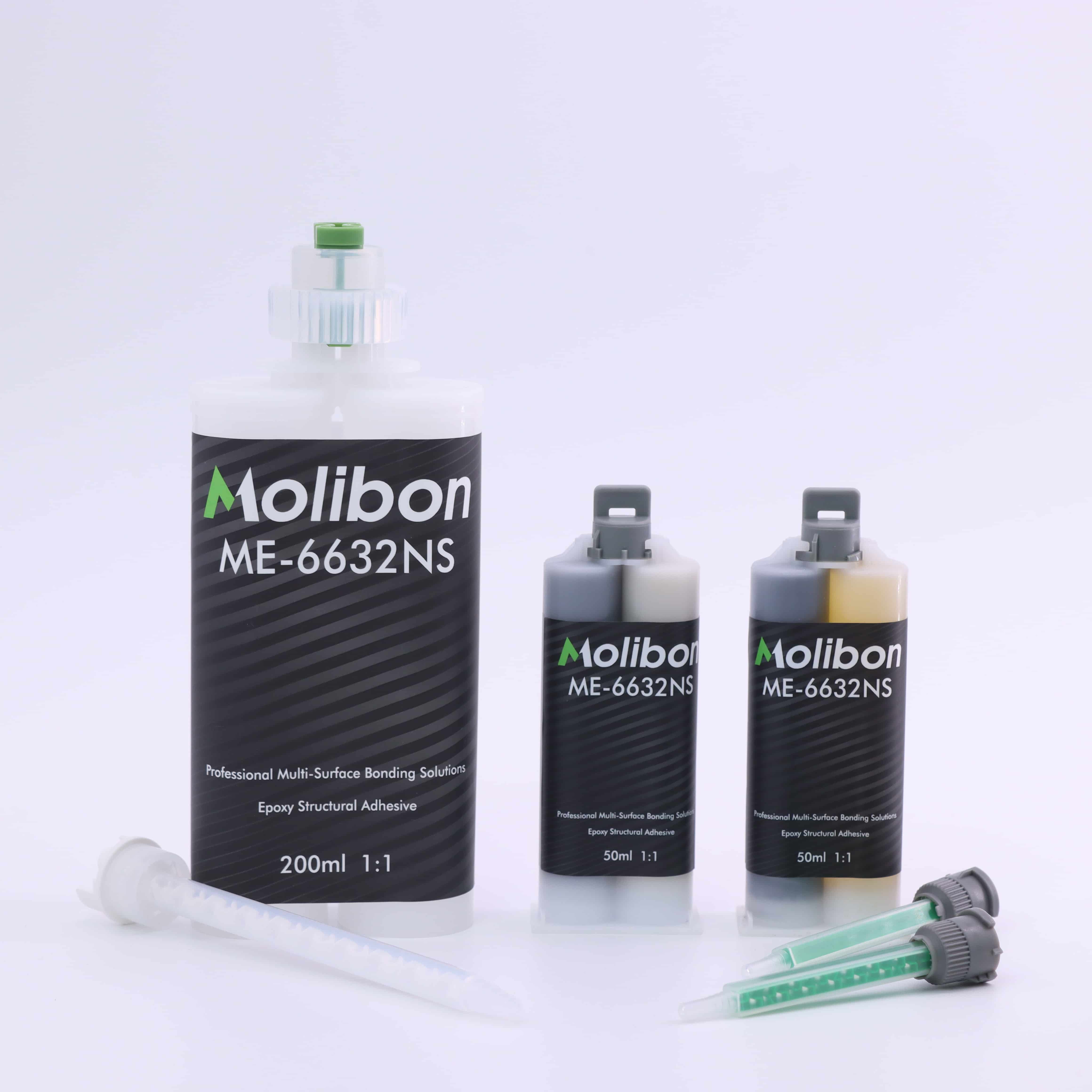

Detail Images

Product Features

Test Condition	Carbon Steel–CFRP (MPa)	Aluminum–CFRP (MPa)
23°C / 48 h	>18Mpa	>16Mpa
23°C 6 h / 80°C 2 h	>20Mpa	>18Mpa
38°C / 95% RH / 14 d	>17Mpa	>15Mpa
Water immersion 7 d + 24 h recovery	>17.3Mpa	>15.3Mpa
85°C / 7 d + 24 h recovery	>17.5Mpa	>16.5Mpa

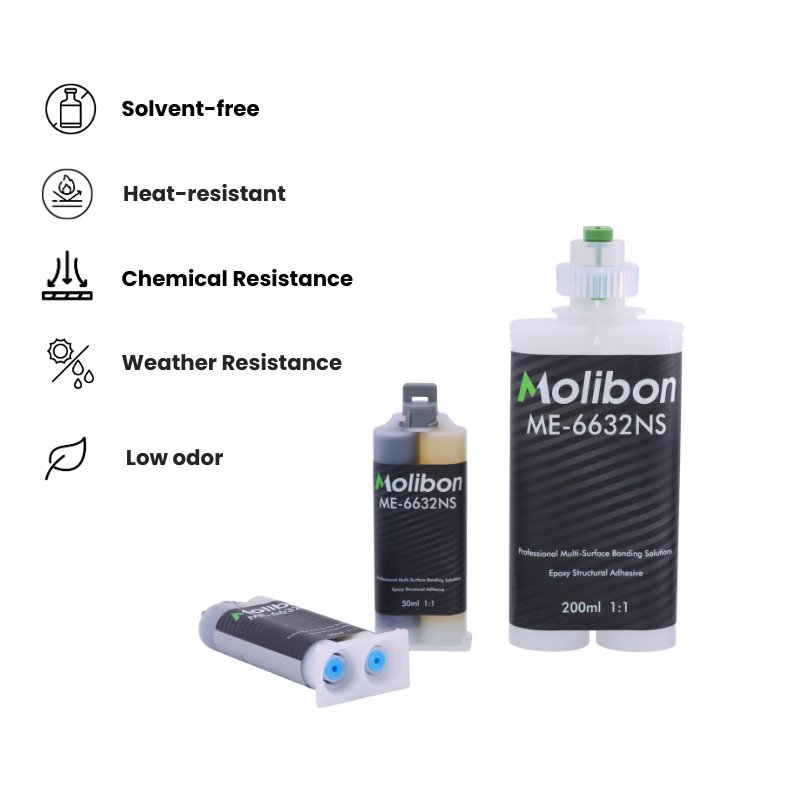

Medium-viscosity Structural Bonding
Wide Service Temperature Range (–40°C to 150°C)
Low Shrinkage Formulation
Solvent-free & Low-odor
Load-Bearing Performance
High Bond Strength
Impact Resistance

Application: Automotive Structural Bonding, Consumer Electronics & Communication Equipment Assembly

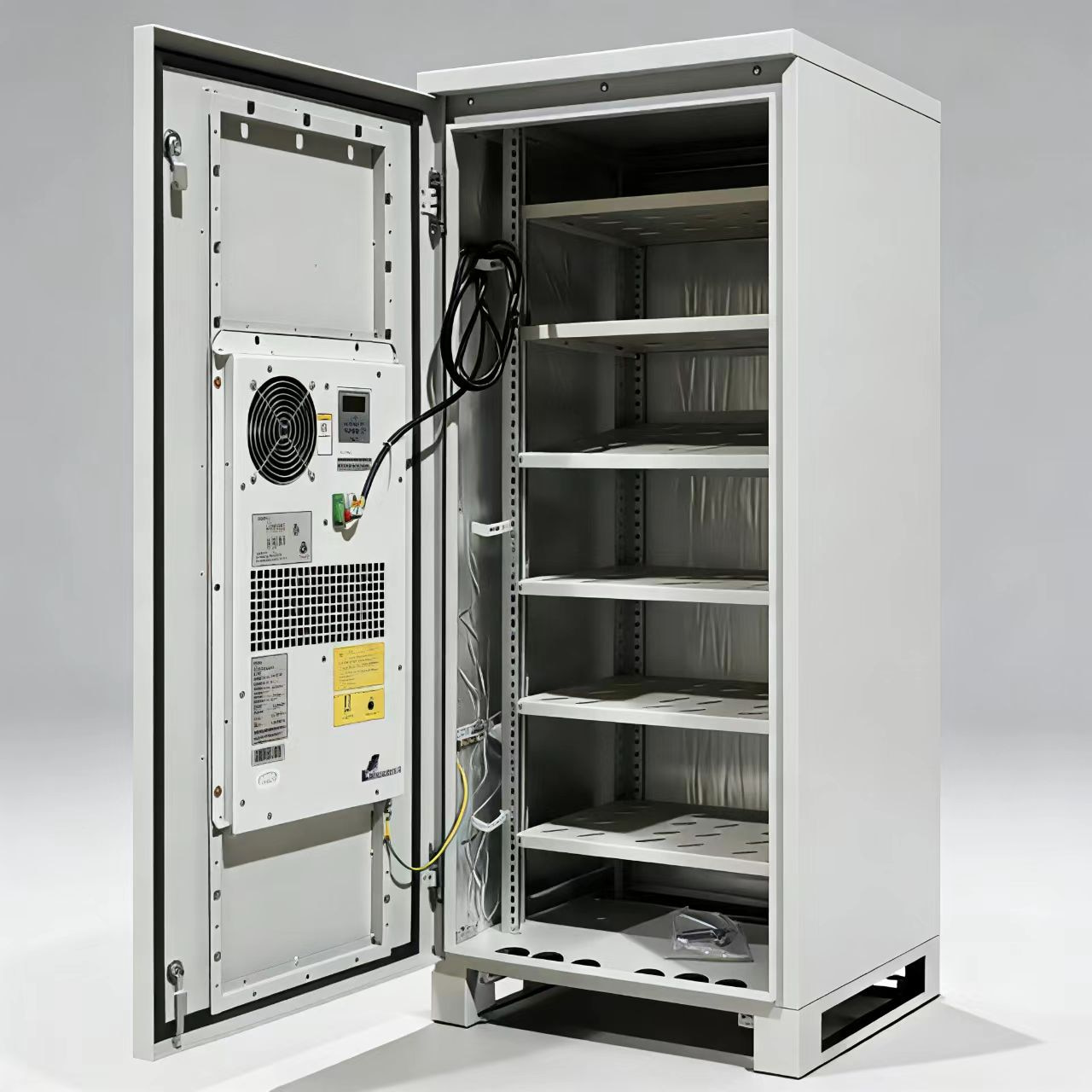

Communication & Network Equipment

The two-component electronic adhesive glue is used in assembling communication cabinets, network hardware and electronic enclosures, it delivers strong adhesion, chemical resistance and weather resistance, making it an ideal epoxy glue for these applications.
Consumer Electronics Assembly

Suitable for structural bonding of metal frames, reinforced plastics and treated rubber parts in electronic devices, the epoxy electronic adhesive offers reliable performance and environmental stability.
Automotive Structural Bonding

Used for bonding metal, CFRP, FRP, and SMC components in vehicle body structures, interior assemblies and lightweight composite parts, the automotive adhesive provides high strength and long-term durability.

Why Choose Us?

OEM/ODM Welcome
Flexible MOQ
24/7 Fast Response & 100% Satisfaction

Packaging & Shipment

Industrial Adhesive Glue Packing and Shipment

FAQ

1.What are the recommended storage conditions and shelf life?

A: The unopened epoxy bonding adhesive can be stored for 12 months from the date of production. Optimal storage is between 15°C and 25°C, preferably in this low temperature and humidity range.

2. What kind of customization do you offer for OEM?

A: We support OEM services including label customization and packaging.

3. Does the adhesive meet industry safety and compliance standards?

A: Yes, it is environmentally friendly, being solvent-free, non-flammable, and odorless. It is also resistant to dilute acids, alkalis, solvents, greases, and oils.

4. What are the available curing methods and final color of the adhesive?

A: The metal bonding glue can be cured at room temperature (24 hours at 25°C) or by heat. The final cured color is Dark gray. (Custom Colors Available)
